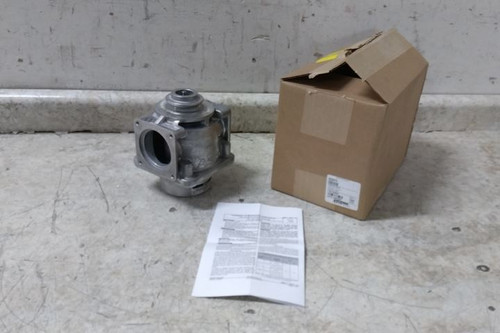

This is an Asco solenoid valve body. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Solenoid Valve Body |
| Manufacturer Part Number | 8158A300X1X0000 |
| Body Material | Die Cast Aluminum |
| Valve Starting Configuration | Normally Closed |
| Actuator Type | Spring Return |
| Trim Type | Linear Trim |
| Valve Design | Single Valve |
| Product Type | Valve Body |
| Valve Ways | 2-Way |
| Valve Positions | 2-Position |
| For Media | Fuel Gas |
| Inlet Connection Type | NPT |
| Outlet Connection Type | NPT |
| Mounting Orientation | Horizontal or Vertical |
| Operating Temperature - Minimum | -40 °F |
| Operating Temperature - Maximum | 150 °F |
| Operation Type | Pilot Operated |
| Fluid Temperature - Maximum | 68 °F |
| Operating Pressure Differential - Minimum | 0 psi |
| Response Time | 1 sec |
| Seal Material | NBR |
| Thread Type | NPT |
| Compatible with Brand | ASCO |
| Application | Burner |
| Includes End Connector | End Connector Not Included |
| Compatible with Series | Series 159 |
