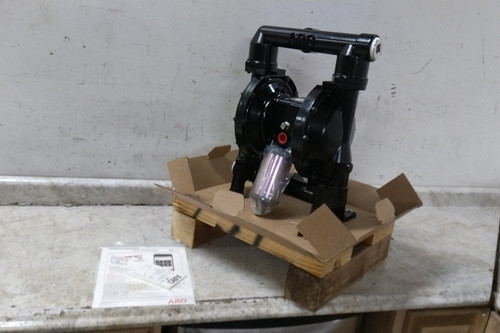

This is an Aro PD15A-AAP-AAA EXP Series 1-1/2 in. metallic air-operated double diaphragm pump. It features an aluminum housing with Santoprene diaphragms, valves, and check seats. Capable of delivering flow rates up to 130 GPM at 120 PSI, this pump provides reliable fluid transfer for industrial and chemical applications.
Item was fully unboxed and inspected. The pump is in like-new condition with original base packaging, product bulletin/manual, inspection test card, and factory-wrapped filter/muffler accessory. No functional testing was performed as we do not have the capability to install the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Made in USA.
Technical Specs
| Item | Air-Operated Double Diaphragm Pump |
| Manufacturer Part Number | PD15A-AAP-AAA |
| Power Source | Air |
| Housing Material | Aluminum |
| Diaphragm Material | Santoprene |
| Valve Material | Santoprene |
| Check Seat Material | Santoprene |
| Center Section Material | Aluminum |
| Mounting Hardware Material | Plated Steel |
| Pump Assembly Type | Bolt |
| Manifold Connection | Single Port |
| Fluid Intake Connection | 1-1/2 in NPTF |
| Fluid Discharge Connection | 1-1/2 in NPTF |
| Max. Flow Rate | 130 gpm |
| Manifold Connection Type | NPT |
| Flow Rate @ 40 psi | 75 gpm |
| Flow Rate @ 50 psi | 91.5 gpm |
| Flow Rate @ 60 psi | 101.4 gpm |
| Flow Rate @ 70 psi | 108 gpm |
| Flow Rate @ 80 psi | 116.5 gpm |
| Flow Rate @ 90 psi | 121.6 gpm |
| Flow Rate @ 100 psi | 125 gpm |
| Flow Rate @ 120 psi | 130 gpm |
| Max. Discharge Pressure | 120 psi |
| Max. Feet of Head | 289 ft |
| NPSHr | 24.5 ft of head |
| Max. Solid Dia. | 0.25 in |
| Max. Viscosity | 40,000 cps |
| Min. Media Temperature | -40 °F |
| Max. Media Temperature | 225 °F |
| Chemical Compatibility | Alcohol; Antifreeze; Diesel Exhaust Fluid; Water |
| Air Consumption | 100 scfm |
| Air Inlet | 1/2 in NPT |
| Rated Air Pressure | 120 psi |
| Valve Type | Ball |
| Priming | Self-Priming |
| Media Intake Location | Center; Side |
| Media Discharge Location | Center; Side |
| For Use With Potable Systems | No |
| Nameplate Voltage | N |
| Overall Height | 19.6 in |
| Overall Length | 14.9 in |
| Overall Width | 14 in |
| Series Family | EXP |
| Series | PX15X |
| Country of Origin | USA |
