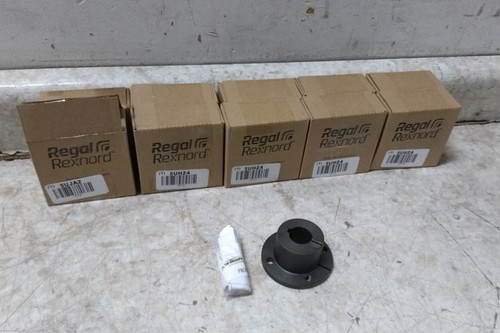

This is a package of 5 TB Wood's quick detachable bushings. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Quick Detachable Bushing |
| Manufacturer Part Number | QT34 |
| Bushing Type | Quick Detachable |
| Bore Bushing Series | QT |
| Bore System of Measurement | Inch |
| For Shaft Type | Keyed |
| Bore Diameter | 3/4 in |
| Keyway Width | 3/16 in |
| Keyway Depth | 3/32 in |
| Overall Diameter | 2.5 in |
| Bolt Circle Diameter | 2 in |
| Large Barrel Diameter | 1.625 in |
| Overall Length | 1.25 in |
| Flange Type | Split |
| Flange Thickness | 1/4 in |
| Length Less Flange | 1 in |
| Maximum Torque | 1,750 in-lb |
| Taper | 3/4 in Per ft |
| Bolt Size | 1/4"-20 x 1 in |
| SAE Grade | 5 |
| Material | Steel |
