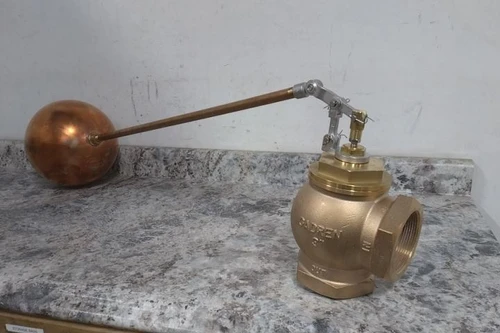

This is a Brand Name float valve assembly. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Float Valve Assembly |
| Manufacturer Part Number | AHF300 |
| For Media | Water |
| Valve Body Style | Angle |
| Float Shape | Cylindrical |
| Mounting | Horizontal Piping |
| Body Material | Bronze |
| Flow Rate | 400 gpm @ 60 psi |
| Max. Pressure (CWP) | 75 psi |
| Pipe Size | 3 in |
| Inlet | 3 in FNPT |
| Inlet Connection Type | FNPT |
| Connection Size - Side 1 | 3 in |
| Connection Gender - Side 1 | Female |
| Connection Type - Side 1 | NPT |
| Outlet | 3 in FNPT |
| Outlet Connection Type | FNPT |
| Connection Size - Side 2 | 3 in |
| Connection Gender - Side 2 | Female |
| Connection Type - Side 2 | NPT |
| Arm Adjustability | Adjustable |
| Rod | 24 in Brass |
| Rod Length | 24 in |
| Rod Material | Brass |
| Rod Thread | 3/8" NPT |
| Seal Material | Neoprene |
| Seat Style | Single Seated |
| Float Diameter | 9 in |
| Float Material | Copper |
| Float | 9 in dia. Cylindrical Copper |
| Media Temp. Range | 33 °F to 100 °F |
| Min. Media Temperature | 33 °F |
| Max. Media Temperature | 100 °F |
