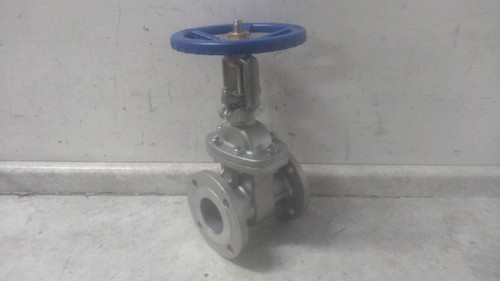

This is a Sharpe gate valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Gate Valve |
| Manufacturer Part Number | 4371004860 |
| For Media | Steam; Water |
| Body Material | 316 Stainless Steel |
| Nominal Valve Size | 3 in |
| ANSI Flange Class | Class 150 |
| Max. Pressure (CWP) | 275 psi |
| Bonnet Style | Bolted |
| Bonnet Material | Stainless Steel |
| Handle Type | Wheel |
| Handle Material | Ductile Iron |
| Stem Type | Rising |
| Stem Material | 316 Stainless Steel |
| Seat Material | Stainless Steel |
| Seal Material | RPTFE |
| Wedge Style | Flexible |
| Wedge Material | CF8M Stainless Steel |
| Connection Type | Class 150 Flange |
| Connection Size - Side 1 | 3 in |
| Connection Type - Side 1 | Flange |
| Connection Size - Side 2 | 3 in |
| Connection Type - Side 2 | Flange |
| Media Temp. Range | -20 °F to 450 °F |
| Operating Temperature - Minimum | -20 °F |
| Operating Temperature - Maximum | 450 °F |
| Overall Length | 7.99 in |
| Number of Flange Bolt Holes | 4 |
| Handle Diameter | 9.84 in |
| Handle Height | 18.5 in |
| Valve Series | 35 |
