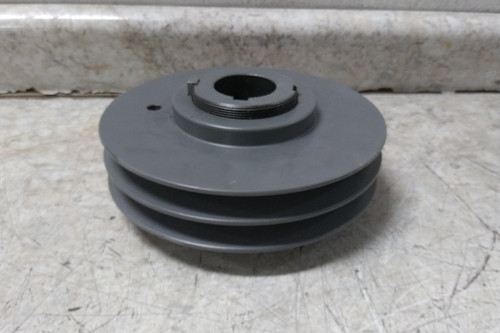

This Brand Name 2VP75X1-5/8 is a 2-groove variable pitch V-belt pulley sheave constructed from durable cast iron. Designed with a 1-5/8 inch finished bore, 7.5 inch outside diameter, and a 3/8 x 3/16 inch keyway, it provides versatile speed adjustments for classical, wedge, cogged, and banded V-belt drives (4L, 5L, A, AX, B, BX, 5V, 5VX).
We have inspected this item and we do not have the capability to install the unit to fully test it. The item exhibits major scuffs, scratches, and cosmetic surface wear across the cast iron body and collar.
Defects Noted:
Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Variable Pitch V-Belt Pulley |
| Manufacturer Part Number | 2VP75X1-5/8 |
| Pulley Series | VP |
| Pulley Industry Number | 2VP75 |
| Number of Grooves | 2 |
| Number of Turns to Fully Open | 5 (4L, A); 6 (5L, B); 6 (5V) |
| Bore Diameter | 1-5/8 in |
| Keyway | Yes |
| Keyway Width | 3/8 in |
| Keyway Depth | 3/16 in |
| Length Through Bore | 3-1/4 in |
| For Belt Section | 4L 5L A AX B BX 5V 5VX |
| For V-Belt Type | Classical Wedge Cogged Banded |
| Minimum Pitch Diameter | 5.7 in (4L, A) 5.8 in (5L, B) 6.2 in (5V) |
| Maximum Pitch Diameter | 6.7 in (4L, A) 7 in (5L, B) 7.4 in (5V) |
| 4L Pitch Diameter (Minimum) | 5.7 in |
| 4L Pitch Diameter (Maximum) | 6.7 in |
| 5L Pitch Diameter (Minimum) | 5.8 in |
| 5L Pitch Diameter (Maximum) | 7 in |
| A Pitch Diameter (Minimum) | 5.7 in |
| A Pitch Diameter (Maximum) | 6.7 in |
| AX Pitch Diameter (Minimum) | 5.7 in |
| AX Pitch Diameter (Maximum) | 6.7 in |
| B Pitch Diameter (Minimum) | 5.8 in |
| B Pitch Diameter (Maximum) | 7 in |
| BX Pitch Diameter (Minimum) | 5.8 in |
| BX Pitch Diameter (Maximum) | 7 in |
| 5V Pitch Diameter (Minimum) | 6.2 in |
| 5V Pitch Diameter (Maximum) | 7.4 in |
| 5VX Pitch Diameter (Minimum) | 6.2 in |
| 5VX Pitch Diameter (Maximum) | 7.4 in |
| Outside Diameter | 7.5 in |
| Minimum Face Width | 1.625 in |
| Maximum Face Width | 2.375 in |
| Overall Width | 3-1/4 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Pulley Construction | Plain |
| Weight | 16.5 lb |
