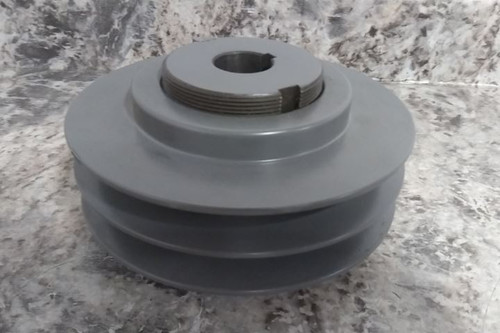

This is a Brand Name variable pitch v-belt pulley. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Variable Pitch V-Belt Pulley |
| Manufacturer Part Number | 2VP60x1 |
| Pulley Series | VP |
| Pulley Industry Number | 2VP60 |
| Number of Grooves | 2 |
| Number of Turns to Fully Open | 5 (4L, A); 6 (5L, B) |
| Bore Diameter | 1 in |
| Keyway | Yes |
| Keyway Width | 1/4 in |
| Keyway Depth | 1/8 in |
| Length Through Bore | 3-1/4 in |
| For Belt Section | 4L 5L A AX B BX |
| For V-Belt Type | Banded Cogged Wedge |
| Minimum Pitch Diameter | 4.2 in (4L, A) 4.3 in (5L, B) |
| Maximum Pitch Diameter | 5.2 in (4L, A) 5.5 in (5L, B) |
| 4L Pitch Diameter (Minimum) | 4.2 in |
| 4L Pitch Diameter (Maximum) | 5.2 in |
| 5L Pitch Diameter (Minimum) | 4.3 in |
| 5L Pitch Diameter (Maximum) | 5.5 in |
| A Pitch Diameter (Minimum) | 4.2 in |
| A Pitch Diameter (Maximum) | 5.2 in |
| AX Pitch Diameter (Minimum) | 4.2 in |
| AX Pitch Diameter (Maximum) | 5.2 in |
| B Pitch Diameter (Minimum) | 4.3 in |
| B Pitch Diameter (Maximum) | 5.5 in |
| BX Pitch Diameter (Minimum) | 4.3 in |
| BX Pitch Diameter (Maximum) | 5.5 in |
| Outside Diameter | 6 in |
| Minimum Face Width | 1.625 in |
| Maximum Face Width | 2.375 in |
| Overall Width | 3-1/4 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Set Screw Location | 90° from Keyway; On Keyway |
| Pulley Construction | Plain |
| Weight | 10.6 lb |
