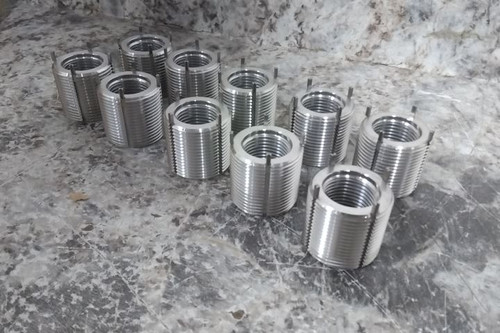

This is a package of 10 Brand Name key locking inserts. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Key Locking Insert |
| Manufacturer Part Number | 217-076543 |
| System of Measurement | Inch |
| Internal Thread Size | 1"-12 |
| External Thread Size | 1-1/2"-12 |
| Overall Length | 1-3/8 in |
| Insert Diameter | 1-1/2 in |
| Wall Type | Extra Heavy Wall |
| Material | Stainless Steel |
| Material Grade/Class | 18-8 |
| Finish | Plain |
| Number of Locking Keys | 4 |
| Thread Type | Coarse |
| External Thread Fit | 2A |
| Internal Thread Fit | 3B |
| Drill Bit Size | 1-27/64 in |
| Compatible Tap Size | 1-1/2"-12 |
| Maximum Hole Diameter | 1.442 in |
| Minimum Installation Depth | 1 in |
