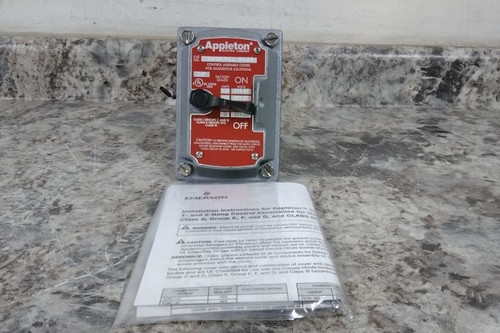

This is an Appleton Electric motor switch. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Motor Switch |
| Manufacturer Part Number | EDSK-MC2 |
| Series | Contender |
| Starter Style | NEMA |
| Number of Poles | 2 |
| Phase | Single |
| Max Current (AC) | 30 A |
| Maximum Voltage Rating | 600V AC |
| Horsepower @ Single Phase - 120V AC | 1 hp |
| Horsepower @ Three Phase - 240V AC | 2 hp |
| Horsepower @ Three Phase - 480V AC | 3 hp |
| Operator | Handle |
| Wire Termination Type | Screw |
| NEMA Enclosure Rating | 3 |
| Factory Sealed | Yes |
| Hub Diameter | 0.75 in |
| Overall Height | 6.81 in |
| Overall Width | 3.72 in |
| Overall Depth | 5.31 in |
| Mounting Style | Surface |
| Mounting Hole Distance - Height | 5.88 in |
| Mounting Hole Distance - Width | 2.63 in |
| Mounting Hole Diameter | 0.34 in |
| Maximum Operating Temperature | 104 °F |
| Resistance Properties | Dust Ignition Proof; Explosion Proof |
