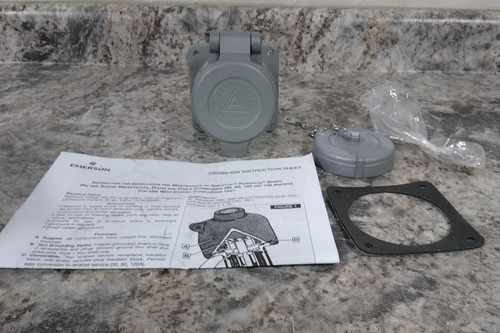

This is an Appleton Electric receptacle. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Receptacle |
| Manufacturer Part Number | ADRE3044-75 |
| Cap Type | Screw-On Cap |
| Connection Orientation | 15° Elbow |
| Contact Material | Copper |
| Voltage Rating | 120/240/480/600VAC |
| Current Rating | 30 A |
| Face Diameter | 3.38 in |
| Flange Height | 3.38 in |
| Flange Type | Flanged |
| Flange Width | 3.38 in |
| For Maximum Cable Diameter | 1.125 in |
| For Minimum Cable Diameter | 0.5 in |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Horsepower Rating | 20 hp |
| Housing Color | Gray |
| Housing Material | Copper-Free Aluminum |
| IP Rating | Not Rated |
| Insulation Material | Fiberglass-Reinforced Polyester |
| Market | Industrial |
| Maximum Operating Temperature | 104 °F |
| Maximum Wire Size | 6 AWG |
| Minimum Operating Temperature | -13 °F |
| Minimum Wire Size | 10 AWG |
| Mounting Box Entry | Dead End; Feed Through |
| NEMA Enclosure Rating | 3; 3R; 4; 4X |
| Number of Gangs | 1 |
| Number of Poles | 4 |
| Number of Wires | 4 |
| Phase | Single |
| Power Indicating Light | No |
| Resistance Properties | Corrosion Resistant |
| Reverse Service | Yes |
| Shrouded | Yes |
| UL 94 Flammability Rating | Not Rated |
| Wire Connection Type | Screw Terminals |
