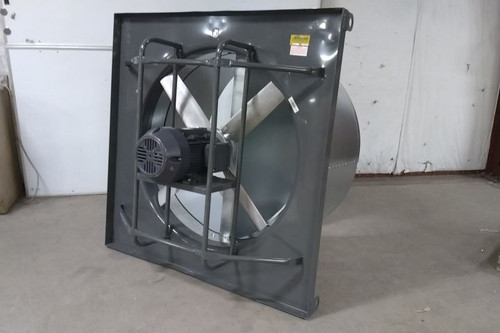

This is an Americraft Fan axial upblast roof exhaust fan. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The fan blade spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit as well as some slight dents. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Axial Upblast Roof Exhaust Fan |
| Manufacturer Part Number | AML-42-5-3-TEFC |
| For Air Type | Clean Air |
| Drive Type | Direct Drive |
| Blade Diameter | 42 in |
| Exhaust Airflow @ 0.000 in SP | 28,970 cfm |
| Exhaust Airflow @ 0.100 in SP | 28,970 cfm |
| Exhaust Airflow @ 0.125 in SP | 27,960 cfm |
| Exhaust Airflow @ 0.250 in SP | 26,840 cfm |
| Exhaust Airflow @ 0.375 in SP | 25,700 cfm |
| Exhaust Airflow @ 0.500 in SP | 24,200 cfm |
| Maximum Static Pressure | 1/2 in wc |
| For High-Static Pressure Applications | No |
| Nameplate Voltage | 230/460V AC |
| Phase | 3 |
| Current | 7.3 A |
| Frequency | 60 Hz |
| Motor Horsepower | 5 hp |
| Brake Horsepower | 4-3/4 hp |
| Maximum Fan Speed | 1,140 RPM |
| Motor Speed | 1,140 RPM |
| Speed Controllable | No |
| Number of Speeds | 1 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| High-Efficiency Motor | No |
| Housing Material | Steel |
| Housing Finish | Galvanized |
| Blade Material | Aluminum |
| Number of Blades | 4 |
| Maximum Inlet Air Temperature | 104 °F |
| Maximum Ambient Temperature | 104 °F |
| Mount Type | Roof Curb |
| Mounting Location | Roof |
| Bearing Type | Ball Bearing |
| Damper Size | 48 x 48 in |
| Base Shape | Square |
| Base Height | 2-1/2 in |
| Base Length | 57 in |
| Base Width | 57 in |
| Housing Length | 48 in |
| Housing Width | 48 in |
| Overall Height | 50-1/2 in |
| Overall Width | 57 in |
| Overall Depth | 57 in |
| Overall Diameter | 42 in |
| Maximum Noise Level @ 5 Feet | 56 sones |
| Sound Level | 56 sones @ 0.250 in SP and 5 ft |
| Application | Designed for General Ventilation, Smoke, and Fume Removal Where Lower Cost and Less Maintenance are a Priority |
| Spark Resistant Construction Type | Not Rated |
| Blade Finish | Galvanized |
