This is an Airmaster Fan standard-duty industrial fan. Please refer to the technical specifications in the listing for more information.
We have inspected this item and it powers on when plugged in. We do not have the capability to test the unit any further. This unit may be missing some hardware. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.

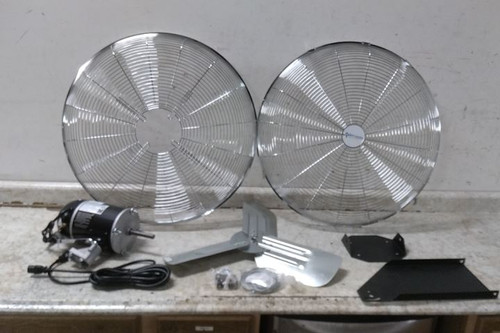

This unit only includes what is photographed in the listing.
Technical Specs
| Item | Standard-Duty Industrial Fan |
| Blade Diameter | 24 in |
| Wheeled Base | Stationary |
| Oscillation | Oscillating |
| Watts | 275 |
| Number of Speeds | 3 |
| Voltage | 115V AC |
| Phase | 1 |
| Air Flow | 2,820/4,020/5,520 cfm |
| Motor HP | 1/3 hp |
| Fan Mounting Location | Wall |
| Air Velocity @ 10 Ft. | 900 fpm |
| Air Velocity @ 20 Ft. | 500 fpm |
| Air Velocity @ 40 Ft. | 300 fpm |
| Air Velocity @ 60 Ft. | 200 fpm |
| Air Velocity @ 80 Ft. | 100 fpm |
| Sound Level | 71 dBA |
| Max. Ambient Temp. | 104 °F |
| Hz | 60 Hz |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Insulation | Class B |
| Motor Type | Permanent Split Capacitor |
| Thermal Protection | Yes |
| Bearing Type | Ball |
| NEMA Plug Configuration | 5-15P |
| Height | 27 in |
| Width | 27 in |
| Number of Blades | 3 |
| Blade Material | Galvanized Steel |
| Shaft Dia. | 5/8 in |
| Guard Material | Steel |
| Wire Guard Finish | Nickel Chrome |
| Number of Conductors | 3 |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
