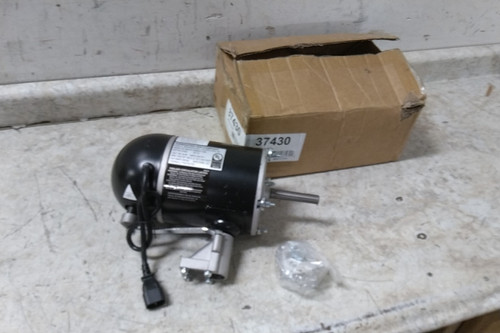

This is an Airmaster Fan oscillating fan motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. It is missing a portion of the power cable. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Oscillating Fan Motor |
| Manufacturer Part Number | 37430 |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Type | Totally Enclosed Air-Over |
| Mounting Type | Yoke |
| Number of Speeds | 3 |
| Nameplate Horsepower @ 60 Hz | 1/3 hp |
| Nameplate RPM @ 60 Hz | 1,100 RPM |
| Nameplate Voltage @ 60 Hz | 115V AC |
| Frequency | 60 Hz |
| Full Load Amps @ 60 Hz | 3.2 A |
| Phase | Single |
| Frame Size | 48YZ |
| Motor Thermal Protection | Auto |
| Nameplate Service Factor @ 60 Hz | 1 |
| Shaft Length | 3-1/2 in |
| Shaft Diameter | 5/8 in |
| Body Diameter | 5.8 in |
| Motor Shaft Rotation | CWSE |
| Usable @ 208V | Not Usable at 208V |
| Product Type | Pedestal Fan Motor |
| Duty | Continuous |
| Bearing Type | Ball |
| Overall Length | 13-7/32 in |
| Ambient Temperature - Maximum | 40 °C |
| Insulation Class | B |
| Application | Pedestal Fan |
| Sub Application | Pedestal Fan |
| Length Less Shaft | 9-11/16 in |
