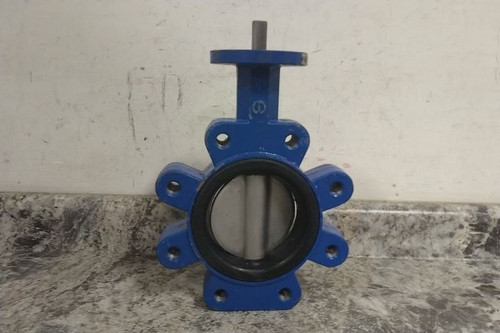

This is an ABZ Valves butterfly valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
No handle included. This unit only includes what is photographed in the listing.
Technical Specs
| Item | Butterfly Valve |
| Manufacturer Part Number | 5322024220 |
| Pipe Size | 4 in |
| Connection Type | Lug |
| ANSI Flange Class | Class 150 |
| Bolt Holes | 8 |
| Max. Pressure (CWP) | 250 psi |
| For Media | Water |
| 3-A Compliance | Not Rated |
| Vacuum Service Rating | Not Rated |
| Flow Coefficient (Cv) | 827 |
| Valve Series | 396; 397 |
| Body Material | Ductile Iron |
| Disc Material | 316 Stainless Steel |
| Liner Material | Buna-N |
| Stem Material | 416 Stainless Steel |
| Handle Type | Bare Stem |
| Includes Disc Position Indicator | No Disc Position Indicator |
| Lug Diameter | 5/8"-11 |
