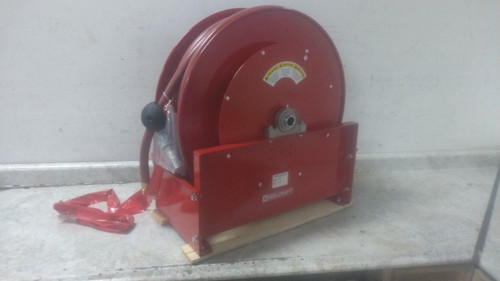

This is a Reelcraft spring return hose reel. Please refer to the technical specifications in the listing for more information.
We have inspected this item and the hose extends/retracts. We do not have the capability to test the unit any further. There are some slight bends/dents along the edge of the reel. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Spring Return Hose Reel |
| Hose Reel Primary Application | Air; Water |
| Maximum Operating Pressure | 250 psi |
| Hose Capacity | 100 ft (3/4 in I.D.) |
| Drive Type | Spring Return |
| Enclosed | No |
| Hose Inside Dia. | 3/4 in |
| Hose Length | 100 ft |
| Reel Material | Carbon Steel |
| Speed Limited Retraction | No |
| Overall Height | 26-3/8 in |
| Overall Length | 26-1/4 in |
| Overall Width | 12 in |
| Corrosion-Resistant | Yes |
| For Dual Hose | No |
| Hose Color | Red |
| Hose Cover Material | PVC |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 3/4 in |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 3/4 in |
| Hose Fitting B Type | NPT |
| Hose Outside Dia. | 1-1/16 in |
| Hose Reel Type | Floor; Vehicle |
| Hose Tube Material | PVC |
| Base Motion Type | Stationary |
| Pedestal Type | Dual Pedestal |
| Number of Mount Holes | 4 |
| Reel Color | Red |
| Twin Hose Compatible | No |
| Swivel Material | Nickel Plated Steel |
| Swivel Inlet Type | NPT |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 3/4 in |
| Swivel Outlet Thread Size | 3/4 in - 14 |
| Swivel Outlet Type | NPT |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/4 in |
| Swivel Inlet Thread Size | 3/4 in - 14 |
| Reel Width | 12 in |
| Reel Finish | Powder Coated |
| Weight | 143 lb |
| Latch Type | Spring Loaded |
| Bearing Construction | Permanently Lubricated |
| Maximum Operating Temperature | 150 °F |
| Fasteners Included | No |
| Spiral Hose Guard | No |
| Includes Leader Hose | No |
| Minimum Operating Temperature | 32 °F |
| Mount Base Height | 24-1/8 in |
| Mount Base Width | 13-3/8 in |
| Mounting Hole Center to Center Width | 22-1/4 in |
| Mounting Hole Center to Center Height | 7-3/4 in |
| Mount Hole Diameter | 7/16 in |
| Reel Diameter | 15-1/2 in |
| Fitting Type | NPT x NPT |
| Fitting Size | 3/4 in x 3/4 in |
| Hose End Configuration | 3/4 in MNPT |
| Overall Dimensions | 26-1/4 in L x 12 in W x 26-3/8 in H |
| Fitting Gender | Male x Male |
