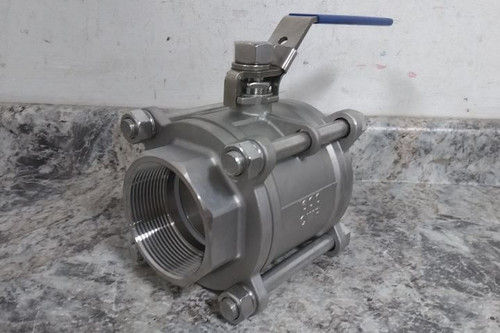

This is a Midwest Control manual two-way ball valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some slight cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Manual Two-Way Ball Valve |
| Manufacturer Part Number | G-S3P1K-300 |
| For Media | Air; Steam; Water |
| Body Material | 316 Stainless Steel |
| Valve Construction | Three-Piece |
| Valve Body Style | Straight |
| Ball Port Style | Full Port |
| Nominal Valve Size | 3 in |
| Connection Type - Side 1 | NPT |
| Connection Gender - Side 1 | Female |
| Connection Size - Side 1 | 3 in |
| Connection Type - Side 2 | NPT |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 2 | 3 in |
| Max. Pressure (CWP) | 600 psi |
| Max. Pressure (Steam) | 150 psi |
| Max. Pressure (Combustible Gas) | Not Rated |
| Vacuum Service Rating | 29.9 in Hg |
| Coefficient of Volume (Cv) | 445.44 |
| Handle Type | Lever |
| Handle - Locking | Locking |
| Handle Material | 304 Stainless Steel |
| Handle Color | Blue |
| Ball Material | 316 Stainless Steel |
| Seat Material | RPTFE |
| Seal Material | FKM |
| Stem Material | 316 Stainless Steel |
| Stem Type | Self-Adjusting |
| Vented Ball Valve | Non-Vented |
| Media Temp. Range | 0 °F to 400 °F |
| Min. Media Temperature | 0 °F |
| Max. Media Temperature | 400 °F |
| 3-A Compliance | Not Rated |
| Overall Length | 7.87 in |
